20 Degree PA Celical Helical Gear Rack Blackened M0.4 Right Handed

Product Categories
Zhuhai Nierson Precision Gear Co., Ltd.
Contact Now

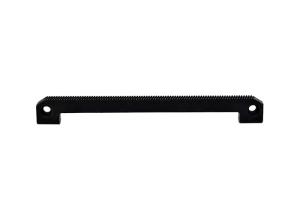

20 Degree PA Celical Helical Gear Rack Blackened M0.4 Right Handed

Brand Name : Nierson

Model Number : N11007207

Certification : RoHS

Place of Origin : China

MOQ : 10 pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 3,000 pcs / month

Delivery Time : 15-20 working days

Packaging Details : Tray + Carton

Material : Bronze

Module : M 0.3

Dimension : 93 × 4.5 × 17

Accuracy grade : 5 / JIS B 1972-1976

Treatment : Blackened

Contact Now

CNC miniature Celical bronze helical gear rack M0.4 Right-Handed 20 degree PA

Module 0.4
Dimensions 93 × 4.5 × 17
Pressure angle 20°
Helix angle (RH) 20°
Process CNC machining
Treatment process Blackened
Material Bronze

1 Machining ability

​​ Nierson can produce M0.3-M10 straight / helical milled racks of DIN3962 Grade 8 (Quality 8) with length up to 2.0m, and M0.3-M10 straight/helical ground racks of DIN3962 Grade 4, 5, 6 (Quality 4, 5, 6) with length up to 1.5m. The racks can be case hardened or teeth hardened.

Quality class 6 / DIN 3962
Teeth of number 2-300T
Module M0.3-10
Maximum Length 2.0m
Roughness Ra 0.8
Material Various brass and steel alloy
Heat treatment Carbo-Nitride, Induction, Nitriding, Quench ect level.

2. Production Equipment

  • Rack milling machine,

  • CNC rack shaping machine,

  • CNC rack grinding machine,

  • MGCM-7150 CNC precision rack grinding machine​

3, Inspection equipment

  • Klingelnberg P26 gear checker
  • Gear roll testing machines
  • Worm Helix Tester
  • Universal Tool Microscope
  • Taylor Surface Roughness Tester
  • Mahr Digital Indicator
  • Roundness Tester
  • Air Gauge

4, Production equipment and capability

  • Production equipments are over 200pcs, including Turning, milling, hobbing, shaping, broaching, honing, grinding, sawing, cutter sharpening, thread etc.
  • Capability is over 30 million per year

5 Package

  • Tray + Carton
